Windows Vista [BSOD when closing laptop lid]

oookkkk welll, i have a Dell Inspiron 1525 laptop with 3gb of ram whenever i close the lid to my laptop it alwase gives me the blue screen of death talking about a usbhub thing, and it also happenes when i try to put it into hibernate mode etc

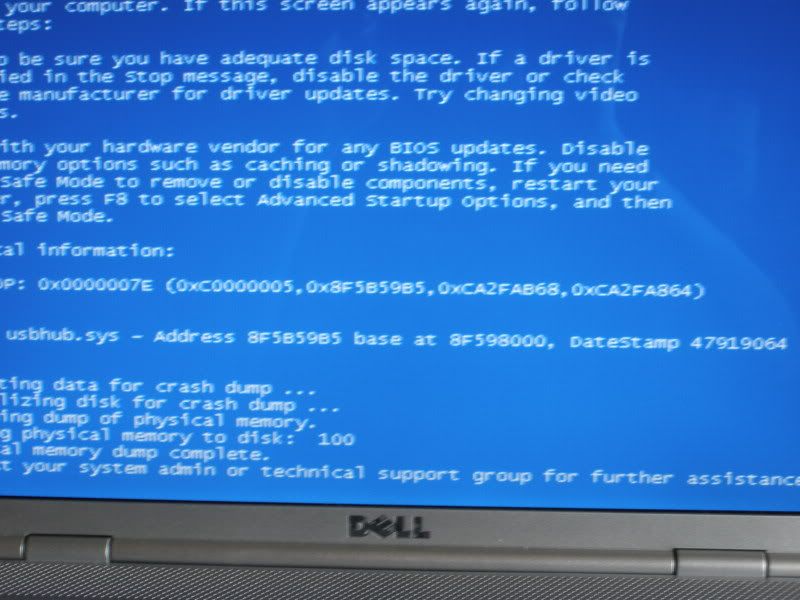

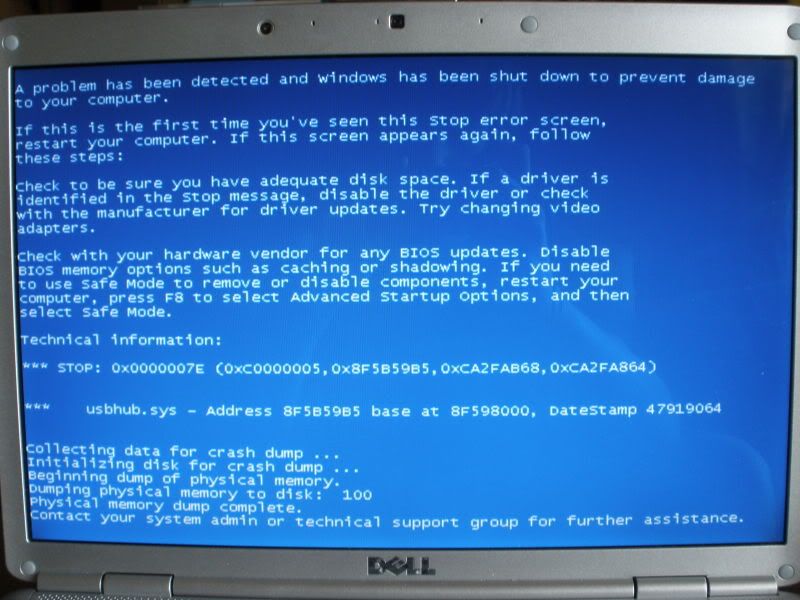

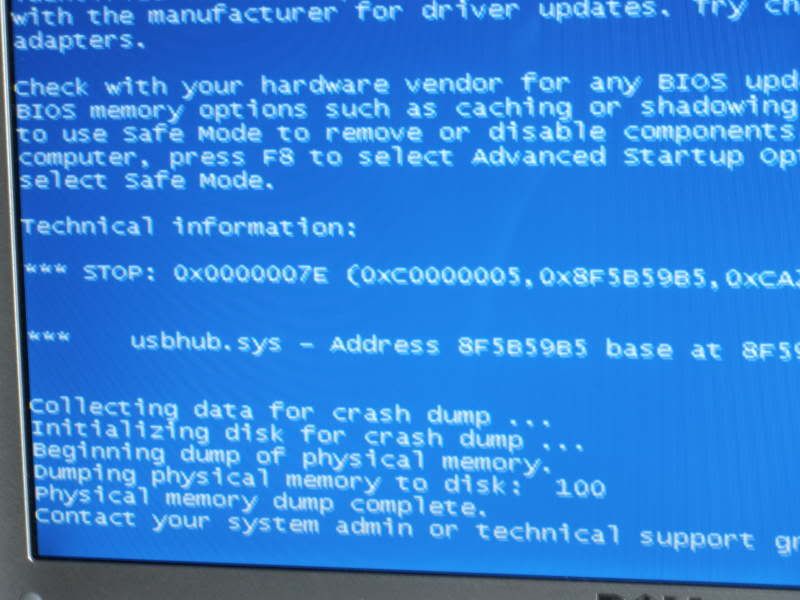

pic!



Welcome to the BBS,

I have seen quite a few standby/USB/hibernate KB articles
Advanced Search Match the Stop code you find on the blue screen, like Stop 0x000000FE or Stop 0x000000E4.

Matt



ERM HERES MY DEBUG LOG!!!!

Opened log file 'c:debuglog.txt'

Microsoft (R) Windows Debugger Version 6.11.0001.404 X86
Copyright (c) Microsoft Corporation. All rights reserved.


Loading Dump File [C:\Windows\Minidump\Mini042509-03.dmp]
Mini Kernel Dump File: Only registers and stack trace are available

Symbol search path is: SRV*c:\symbols*http://msdl.microsoft.com/download/symbols
Executable search path is: C:\Windows;C:\Windows\system32;C:\Windows\system32\drivers
Windows Server 2008/Windows Vista Kernel Version 6001 (Service Pack 1) MP (2 procs) Free x86 compatible
Product: WinNt, suite: TerminalServer SingleUserTS Personal
Built by: 6001.18226.x86fre.vistasp1_gdr.090302-1506
Machine Name:
Kernel base = 0x82008000 PsLoadedModuleList = 0x8211fc70
Debug session time: Sat Apr 25 14:44:57.902 2009 (GMT-4)
System Uptime: 0 days 1:49:59.788
Loading Kernel Symbols
...............................................................
................................................................
........................................................
Loading User Symbols
Loading unloaded module list
..................................................
*******************************************************************************
* *
* Bugcheck Analysis *
* *
*******************************************************************************

Use !analyze -v to get detailed debugging information.

BugCheck 1000007E, {c0000005, 8f5b59b5, ca2fab68, ca2fa864}

*** ERROR: Symbol file could not be found. Defaulted to export symbols for libusb0.sys -
Probably caused by : libusb0.sys ( libusb0!DriverEntry+213c )

Followup: MachineOwner
---------

1: kd> !analyze -v;r;kv;lmtn;.logclose;q
*******************************************************************************
* *
* Bugcheck Analysis *
* *
*******************************************************************************

SYSTEM_THREAD_EXCEPTION_NOT_HANDLED_M (1000007e)
This is a very common bugcheck. Usually the exception address pinpoints
the driver/function that caused the problem. Always note this address
as well as the link date of the driver/image that contains this address.
Some common problems are exception code 0x80000003. This means a hard
coded breakpoint or assertion was hit, but this system was booted
/NODEBUG. This is not supposed to happen as developers should never have
hardcoded breakpoints in retail code, but ...
If this happens, make sure a debugger gets connected, and the
system is booted /DEBUG. This will let us see why this breakpoint is
happening.
Arguments:
Arg1: c0000005, The exception code that was not handled
Arg2: 8f5b59b5, The address that the exception occurred at
Arg3: ca2fab68, Exception Record Address
Arg4: ca2fa864, Context Record Address

Debugging Details:
------------------


EXCEPTION_CODE: (NTSTATUS) 0xc0000005 - The instruction at 0x%08lx referenced memory at 0x%08lx. The memory could not be %s.

FAULTING_IP:
usbhub!UsbhFdoSetPowerDx_Action+36
8f5b59b5 8b4728 mov eax,dword ptr [edi+28h]

EXCEPTION_RECORD: ca2fab68 -- (.exr 0xffffffffca2fab68)
.exr 0xffffffffca2fab68
ExceptionAddress: 8f5b59b5 (usbhub!UsbhFdoSetPowerDx_Action+0x00000036)
ExceptionCode: c0000005 (Access violation)
ExceptionFlags: 00000000
NumberParameters: 2
Parameter[0]: 00000000
Parameter[1]: 00000028
Attempt to read from address 00000028

CONTEXT: ca2fa864 -- (.cxr 0xffffffffca2fa864)
.cxr 0xffffffffca2fa864
eax=8661fef8 ebx=87979028 ecx=8661fdb0 edx=78447350 esi=8661fdb0 edi=00000000
eip=8f5b59b5 esp=ca2fac30 ebp=ca2fac48 iopl=0 nv up ei ng nz na pe nc
cs=0008 ss=0010 ds=0023 es=0023 fs=0030 gs=0000 efl=00010286
usbhub!UsbhFdoSetPowerDx_Action+0x36:
8f5b59b5 8b4728 mov eax,dword ptr [edi+28h] ds:0023:00000028=????????
.cxr
Resetting default scope

CUSTOMER_CRASH_COUNT: 3

PROCESS_NAME: System

CURRENT_IRQL: 0

ERROR_CODE: (NTSTATUS) 0xc0000005 - The instruction at 0x%08lx referenced memory at 0x%08lx. The memory could not be %s.

EXCEPTION_PARAMETER1: 00000000

EXCEPTION_PARAMETER2: 00000028

READ_ADDRESS: GetPointerFromAddress: unable to read from 8213f868
Unable to read MiSystemVaType memory at 8211f420
00000028

FOLLOWUP_IP:
libusb0!DriverEntry+213c
8fae528c 8b5df4 mov ebx,dword ptr [ebp-0Ch]

BUGCHECK_STR: 0x7E

DEFAULT_BUCKET_ID: NULL_CLASS_PTR_DEREFERENCE

LAST_CONTROL_TRANSFER: from 8f5b5d44 to 8f5b59b5

STACK_TEXT:
ca2fac48 8f5b5d44 8661fef8 00000000 8661fdb0 usbhub!UsbhFdoSetPowerDx_Action+0x36
ca2fac70 8f5b5e53 00000004 879795cc 8661fdb0 usbhub!UsbhFdoDevicePowerState+0x169
ca2fac8c 8f599d82 87979028 879790e0 8661fdb0 usbhub!UsbhFdoPower_SetPower+0x6d
ca2faca0 8200d817 87979028 8661fdb0 00000016 usbhub!UsbhGenDispatch+0x63
ca2facb8 820c3fc5 00000004 87979028 ca2facd0 nt!IopPoHandleIrp+0x28
ca2facc8 8200e54e ca2fad00 8fae528c 87979028 nt!IofCallDriver+0x55
ca2facd0 8fae528c 87979028 8661fdb0 00000000 nt!IoCallDriver+0x10
WARNING: Stack unwind information not available. Following frames may be wrong.
ca2fad00 8fae23dc 8733d0e0 8661fdb0 82115f00 libusb0!DriverEntry+0x213c
ca2fad20 8200d284 8733d028 8661fdb0 00000000 libusb0+0x13dc
ca2fad7c 821ddb18 8a19f898 7f65f74a 00000000 nt!PopIrpWorker+0x40f
ca2fadc0 82036a2e 8200ce71 8a19f898 00000000 nt!PspSystemThreadStartup+0x9d
00000000 00000000 00000000 00000000 00000000 nt!KiThreadStartup+0x16


SYMBOL_STACK_INDEX: 7

SYMBOL_NAME: libusb0!DriverEntry+213c

FOLLOWUP_NAME: MachineOwner

MODULE_NAME: libusb0

IMAGE_NAME: libusb0.sys

DEBUG_FLR_IMAGE_TIMESTAMP: 45ffb877

STACK_COMMAND: .cxr 0xffffffffca2fa864 ; kb

FAILURE_BUCKET_ID: 0x7E_libusb0!DriverEntry+213c

BUCKET_ID: 0x7E_libusb0!DriverEntry+213c

Followup: MachineOwner
---------

eax=8661fef8 ebx=87979028 ecx=8661fdb0 edx=78447350 esi=8661fdb0 edi=00000000
eip=8f5b59b5 esp=ca2fac30 ebp=ca2fac48 iopl=0 nv up ei ng nz na pe nc
cs=0008 ss=0010 ds=0023 es=0023 fs=0030 gs=0000 efl=00010286
usbhub!UsbhFdoSetPowerDx_Action+0x36:
8f5b59b5 8b4728 mov eax,dword ptr [edi+28h] ds:0023:00000028=????????
ChildEBP RetAddr Args to Child
ca2fac48 8f5b5d44 8661fef8 00000000 8661fdb0 usbhub!UsbhFdoSetPowerDx_Action+0x36 (FPO: [3,3,4])
ca2fac70 8f5b5e53 00000004 879795cc 8661fdb0 usbhub!UsbhFdoDevicePowerState+0x169 (FPO: [2,2,4])
ca2fac8c 8f599d82 87979028 879790e0 8661fdb0 usbhub!UsbhFdoPower_SetPower+0x6d (FPO: [2,0,4])
ca2faca0 8200d817 87979028 8661fdb0 00000016 usbhub!UsbhGenDispatch+0x63 (FPO: [2,0,4])
ca2facb8 820c3fc5 00000004 87979028 ca2facd0 nt!IopPoHandleIrp+0x28
ca2facc8 8200e54e ca2fad00 8fae528c 87979028 nt!IofCallDriver+0x55
ca2facd0 8fae528c 87979028 8661fdb0 00000000 nt!IoCallDriver+0x10
WARNING: Stack unwind information not available. Following frames may be wrong.
ca2fad00 8fae23dc 8733d0e0 8661fdb0 82115f00 libusb0!DriverEntry+0x213c
ca2fad20 8200d284 8733d028 8661fdb0 00000000 libusb0+0x13dc
ca2fad7c 821ddb18 8a19f898 7f65f74a 00000000 nt!PopIrpWorker+0x40f
ca2fadc0 82036a2e 8200ce71 8a19f898 00000000 nt!PspSystemThreadStartup+0x9d
00000000 00000000 00000000 00000000 00000000 nt!KiThreadStartup+0x16
start end module name
80600000 80608000 kdcom kdcom.dll Sat Jan 19 02:31:53 2008 (4791A769)
80608000 80668000 mcupdate_GenuineIntel mcupdate_GenuineIntel.dll Sat Jan 19 02:29:43 2008 (4791A6E7)
80668000 80679000 PSHED PSHED.dll Sat Jan 19 02:31:21 2008 (4791A749)
80679000 80681000 BOOTVID BOOTVID.dll Sat Jan 19 02:27:15 2008 (4791A653)
80681000 806c2000 CLFS CLFS.SYS Sat Jan 19 00:28:01 2008 (47918A61)
806c2000 807a2000 CI CI.dll Fri Feb 22 00:00:56 2008 (47BE5708)
807a2000 807f3000 rixdptsk rixdptsk.sys Wed Mar 21 09:02:02 2007 (46012CCA)
82008000 823c1000 nt ntkrpamp.exe Mon Mar 02 21:02:28 2009 (49AC8FB4)
823c1000 823f4000 hal halmacpi.dll Sat Jan 19 00:27:20 2008 (47918A38)
82609000 82685000 Wdf01000 Wdf01000.sys Sat Jan 19 00:52:21 2008 (47919015)
82685000 82692000 WDFLDR WDFLDR.SYS Sat Jan 19 00:52:19 2008 (47919013)
82692000 826d8000 acpi acpi.sys Sat Jan 19 00:32:48 2008 (47918B80)
826d8000 826e1000 WMILIB WMILIB.SYS Sat Jan 19 00:53:08 2008 (47919044)
826e1000 826e9000 msisadrv msisadrv.sys Sat Jan 19 00:32:51 2008 (47918B83)
826e9000 82710000 pci pci.sys Sat Jan 19 00:32:57 2008 (47918B89)
82710000 8271f000 partmgr partmgr.sys Sat Jan 19 00:49:54 2008 (47918F82)
8271f000 82721900 compbatt compbatt.sys Sat Jan 19 00:32:47 2008 (47918B7F)
82722000 8272c000 BATTC BATTC.SYS Sat Jan 19 00:32:45 2008 (47918B7D)
8272c000 8273b000 volmgr volmgr.sys Sat Jan 19 00:49:51 2008 (47918F7F)
8273b000 82785000 volmgrx volmgrx.sys Sat Jan 19 00:50:00 2008 (47918F88)
82785000 8278c000 intelide intelide.sys Fri Jan 18 21:28:20 2008 (47916044)
8278c000 8279a000 PCIIDEX PCIIDEX.SYS Sat Jan 19 00:49:40 2008 (47918F74)
8279a000 827a1000 pciide pciide.sys Sat Jan 19 00:49:42 2008 (47918F76)
827a1000 827b1000 mountmgr mountmgr.sys Sat Jan 19 00:49:13 2008 (47918F59)
827b1000 827c9000 cdrom cdrom.sys Sat Jan 19 00:49:50 2008 (47918F7E)
827c9000 827f7000 msiscsi msiscsi.sys Sat Jan 19 00:50:44 2008 (47918FB4)
83003000 830ca000 iastor iastor.sys Wed Mar 21 15:23:05 2007 (46018619)
830ca000 830d2000 atapi atapi.sys Sat Jan 19 00:49:40 2008 (47918F74)
830d2000 830f0000 ataport ataport.SYS Sat Jan 19 00:49:40 2008 (47918F74)
830f0000 83122000 fltmgr fltmgr.sys Sat Jan 19 00:28:10 2008 (47918A6A)
83122000 83132000 fileinfo fileinfo.sys Sat Jan 19 00:34:27 2008 (47918BE3)
83132000 8313adc0 PxHelp20 PxHelp20.sys Wed Oct 17 14:24:26 2007 (4716535A)
8313b000 831ac000 ksecdd ksecdd.sys Sat Jan 19 00:41:20 2008 (47918D80)
831ac000 831c0000 rimsptsk rimsptsk.sys Tue Jan 23 02:40:19 2007 (45B5BBE3)
831c0000 831d3000 i8042prt i8042prt.sys Sat Jan 19 00:49:17 2008 (47918F5D)
831d3000 831ff000 Apfiltr Apfiltr.sys Wed Dec 26 06:02:44 2007 (477234D4)
83205000 83310000 ndis ndis.sys Sat Jan 19 00:55:51 2008 (479190E7)
83310000 8333b000 msrpc msrpc.sys unavailable (00000000)
8333b000 83375000 NETIO NETIO.SYS Sat Jan 19 00:56:19 2008 (47919103)
83375000 833fb000 bcmwl6 bcmwl6.sys Tue Dec 19 14:55:55 2006 (458843CB)
8a60e000 8a6f5000 tcpip tcpip.sys Sat Apr 26 02:00:17 2008 (4812C4F1)
8a6f5000 8a710000 fwpkclnt fwpkclnt.sys Sat Jan 19 00:55:44 2008 (479190E0)
8a710000 8a74b000 udfs udfs.sys Sat Jan 19 00:28:08 2008 (47918A68)
8a74b000 8a775000 nwifi nwifi.sys Mon May 19 22:07:27 2008 (4832325F)
8a7d7000 8a7f1000 sdbus sdbus.sys Sat Jan 19 00:32:56 2008 (47918B88)
8a7f1000 8a7fc000 kbdclass kbdclass.sys Sat Jan 19 00:49:14 2008 (47918F5A)
8a80a000 8a919000 Ntfs Ntfs.sys Sat Jan 19 00:28:54 2008 (47918A96)
8a919000 8a952000 volsnap volsnap.sys Sat Jan 19 00:50:10 2008 (47918F92)
8a952000 8a95a000 spldr spldr.sys Thu Jun 21 20:29:17 2007 (467B17DD)
8a95a000 8a969000 mup mup.sys Sat Jan 19 00:28:20 2008 (47918A74)
8a969000 8a990000 ecache ecache.sys Sat Jan 19 00:50:47 2008 (47918FB7)
8a990000 8a9a1000 disk disk.sys Sat Jan 19 00:49:47 2008 (47918F7B)
8a9a1000 8a9c2000 CLASSPNP CLASSPNP.SYS Sat Jan 19 00:49:36 2008 (47918F70)
8a9c2000 8a9cb000 crcdisk crcdisk.sys Thu Nov 02 04:52:27 2006 (4549B1CB)
8a9d8000 8a9e3000 tunnel tunnel.sys Sat Jan 19 00:55:50 2008 (479190E6)
8a9e3000 8a9f2000 intelppm intelppm.sys Sat Jan 19 00:27:20 2008 (47918A38)
8a9f2000 8a9fb000 tunmp tunmp.sys Sat Jan 19 00:55:40 2008 (479190DC)
8ec00000 8ec09000 wmiacpi wmiacpi.sys Sat Jan 19 00:32:47 2008 (47918B7F)
8ec0a000 8f257000 igdkmd32 igdkmd32.sys Wed Jan 02 11:48:24 2008 (477BC058)
8f257000 8f2f6000 dxgkrnl dxgkrnl.sys Fri Aug 01 21:01:19 2008 (4893B1DF)
8f2f6000 8f303000 watchdog watchdog.sys Sat Jan 19 00:35:29 2008 (47918C21)
8f303000 8f30e000 usbuhci usbuhci.sys Sat Jan 19 00:53:20 2008 (47919050)
8f30e000 8f34c000 USBPORT USBPORT.SYS Sat Jan 19 00:53:23 2008 (47919053)
8f34c000 8f359080 1394BUS 1394BUS.SYS Sat Jan 19 00:53:27 2008 (47919057)
8f35a000 8f369000 rimmptsk rimmptsk.sys Sat Feb 24 00:42:21 2007 (45DFD03D)
8f36a000 8f379000 usbehci usbehci.sys Sat Jan 19 00:53:21 2008 (47919051)
8f379000 8f384000 mouclass mouclass.sys Sat Jan 19 00:49:14 2008 (47918F5A)
8f384000 8f386700 GEARAspiWDM GEARAspiWDM.sys Tue Apr 08 15:15:38 2008 (47FBC45A)
8f388000 8f39a000 HDAudBus HDAudBus.sys Tue Nov 27 18:18:41 2007 (474CA5D1)
8f39a000 8f3e6000 yk60x86 yk60x86.sys Thu Dec 06 07:25:16 2007 (4757EA2C)
8f3e6000 8f3f5200 ohci1394 ohci1394.sys Sat Jan 19 00:53:33 2008 (4791905D)
8f3f6000 8f3f9780 CmBatt CmBatt.sys Sat Jan 19 00:32:47 2008 (47918B7F)
8f40b000 8f44c000 storport storport.sys Sat Jan 19 00:49:49 2008 (47918F7D)
8f44c000 8f457000 TDI TDI.SYS Sat Jan 19 00:57:10 2008 (47919136)
8f457000 8f45f000 umpass umpass.sys Sat Jan 19 00:53:39 2008 (47919063)
8f45f000 8f476000 rasl2tp rasl2tp.sys Sat Jan 19 00:56:33 2008 (47919111)
8f485000 8f490000 ndistapi ndistapi.sys Sat Jan 19 00:56:24 2008 (47919108)
8f490000 8f4b3000 ndiswan ndiswan.sys Sat Jan 19 00:56:32 2008 (47919110)
8f4b3000 8f4d4000 IntcHdmi IntcHdmi.sys Wed Jun 06 19:21:31 2007 (4667417B)
8f4e0000 8f4ef000 raspppoe raspppoe.sys Sat Jan 19 00:56:33 2008 (47919111)
8f4fe000 8f512000 raspptp raspptp.sys Sat Jan 19 00:56:34 2008 (47919112)
8f521000 8f536000 rassstp rassstp.sys Sat Jan 19 00:56:43 2008 (4791911B)
8f545000 8f555000 termdd termdd.sys Sat Jan 19 01:01:06 2008 (47919222)
8f555000 8f556380 swenum swenum.sys Sat Jan 19 00:49:20 2008 (47918F60)
8f557000 8f581000 ks ks.sys Sat Jan 19 00:49:21 2008 (47918F61)
8f581000 8f58b000 mssmbios mssmbios.sys Sat Jan 19 00:32:55 2008 (47918B87)
8f58b000 8f598000 umbus umbus.sys Sat Jan 19 00:53:40 2008 (47919064)
8f598000 8f5cc000 usbhub usbhub.sys Sat Jan 19 00:53:40 2008 (47919064)
8f5cc000 8f5dd000 NDProxy NDProxy.SYS Sat Jan 19 00:56:28 2008 (4791910C)
8f5dd000 8f5ea000 modem modem.sys Sat Jan 19 00:57:16 2008 (4791913C)
8f808000 8f845000 HSXHWAZL HSXHWAZL.sys Thu Nov 02 22:42:16 2006 (454AAC88)
8f845000 8f948000 HSX_DPV HSX_DPV.sys Thu Nov 02 22:43:26 2006 (454AACCE)
8f948000 8f9fc000 HSX_CNXT HSX_CNXT.sys Thu Nov 02 22:42:05 2006 (454AAC7D)
8fa03000 8fa30000 portcls portcls.sys Sat Jan 19 00:53:17 2008 (4791904D)
8fa30000 8fa55000 drmk drmk.sys Sat Jan 19 01:53:02 2008 (47919E4E)
8fa55000 8fa61000 vga vga.sys Sat Jan 19 00:52:06 2008 (47919006)
8fa64000 8fab9000 stwrt stwrt.sys Thu Sep 13 11:29:43 2007 (46E95767)
8fac8000 8fadf000 usbccgp usbccgp.sys Sat Jan 19 00:53:29 2008 (47919059)
8fadf000 8fae0700 USBD USBD.SYS Sat Jan 19 00:53:17 2008 (4791904D)
8fae1000 8faee000 libusb0 libusb0.sys Tue Mar 20 06:33:27 2007 (45FFB877)
8faee000 8fb27880 OEM02Dev OEM02Dev.sys Wed Oct 10 22:29:05 2007 (470D8A71)
8fb28000 8fb29d00 OEM02Vfx OEM02Vfx.sys Mon Mar 05 05:45:03 2007 (45EBF4AF)
8fb2a000 8fb73000 SRTSP SRTSP.SYS Wed Nov 21 18:15:15 2007 (4744BC03)
8fb73000 8fbee000 btwaudio btwaudio.sys Fri Nov 03 20:33:06 2006 (454BDFC2)
8fbee000 8fbf5000 Beep Beep.SYS Sat Jan 19 00:49:10 2008 (47918F56)
90000000 90009000 Fs_Rec Fs_Rec.SYS Sat Jan 19 00:27:57 2008 (47918A5D)



It is a STOP 0x1000007E (or Stop 0x7e) error.

libusb0.sys appears to be an open source driver. You can go to Start -> Computer and open the Windows drive, type libusb0 in the search box. Look at where it is located, see if it in a Program's folder, that may tell you what program has installed it.

Here is the same Stop error, but it relates to Usbhub.sys, not libusb0.sys, so I expect the fix is not relevant.
You have problems after you resume a Windows Vista-based computer from sleep or from hibernation

Look at what USB device drivers you may have installed.

That's my extent of reading the information.

Matt
